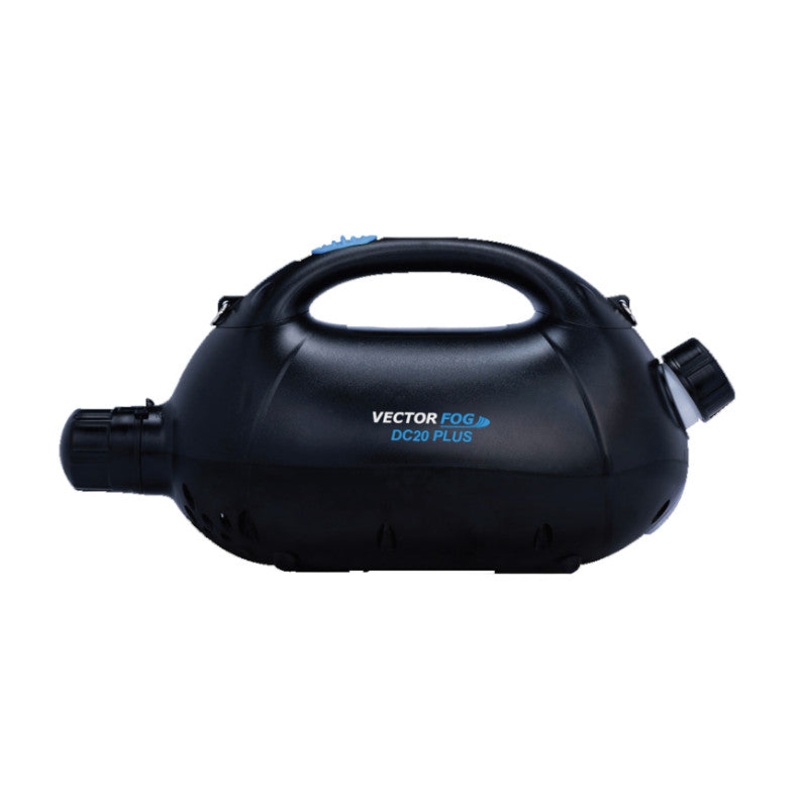

Jansan DC20P Vector Fog Cordless Fogger

Compact, convenient, and efficient, the VectorFog DC20 PLUS offers you the perfect cold fogger for pest control, fumigation, and sanitization in smaller spaces. At just over seven pounds in weight, this motor operated device nonetheless packs a powerful punch: it can be used to apply disinfectants, deodorizers, insecticides, and more over a coverage zone of up to 1,500 square feet. Even better, this device is cordless and comes with a built-in rechargeable battery, meaning you can use your DC20 PLUS anywhere without an external power cord once the battery has been charged.

How it works: a cold fogger generates extremely tiny droplets (ultra-low volume, or ULV) in a mist or aerosol that is then sprayed around the desired area. The incredibly minuscule size of the droplets means the fog can infiltrate and clean even the smallest crevices and corners, making it perfect for fumigation, odor removal, and pest control. A specially designed nozzle allows you to adjust the droplet size within its range (5-50 microns) while also controlling the minimum rate of airflow. Also includes a shoulder strap for safe carrying, chemical mixing cup, and battery charger.

Cold foggers like this one also have the advantage of a lower noise level than most thermal foggers, making the DC20 PLUS an excellent choice for any property that requires peace and quiet, such as hospitals, nursing homes, or schools. At the same time, its compact size and 16-foot horizontal spray distance makes it most suitable for smaller spaces, such as homes, food prep areas, car valets, and offices.

The DC20 PLUS is compatible with numerous different types of solution, including water, oil, and air fresheners, and can be used for multiple purposes, including but not limited to: pest control, regular fumigation to prevent germ and disease spread in schools and public transportation, removing both indoor and outdoor odors, and disinfecting animal shelters to eliminate harmful bacteria.

How to use: its simple. Just pre-mix your chosen chemical solutions, open and fill the two-liter tank, close the cap, and then operate an easy on-off switch. You can adjust the droplet size during use with merely a twist of the nozzle.

Notable Features

• 12V motor and 2 liter capacity tank, for an overall coverage of up to 1,500 square feet with a horizontal spray distance of up to 16 feet
• Specially designed adjustable nozzle for droplet size between 5-50 microns and a minimum flow rate controlled to .25 LPM
• Cordless machine with built-in battery that can be used anywhere without an external power cord after charging
• Compatible with different solution types, including water, oil, and air freshener
• Lower noise level than most thermal foggers
• Continuous fogging time (at full charge) between 35 min. to an hour (approx.)
• Comes with shoulder strap, chemical mixing cup, and battery charger

Note:All new machines come with 30% battery life; battery must be fully charged before use. Unplug charger when fully charged and observe red light (low battery) and green light (fully charged) indicators. Do not use this machine while recharging.. Any questions please call 866-972-8227
